Price:R64,995
Excl VAT
Special priceTill: 19 April 2024
We beat any written quote. one year
warrantee.
e-mail: icm@lantic.net

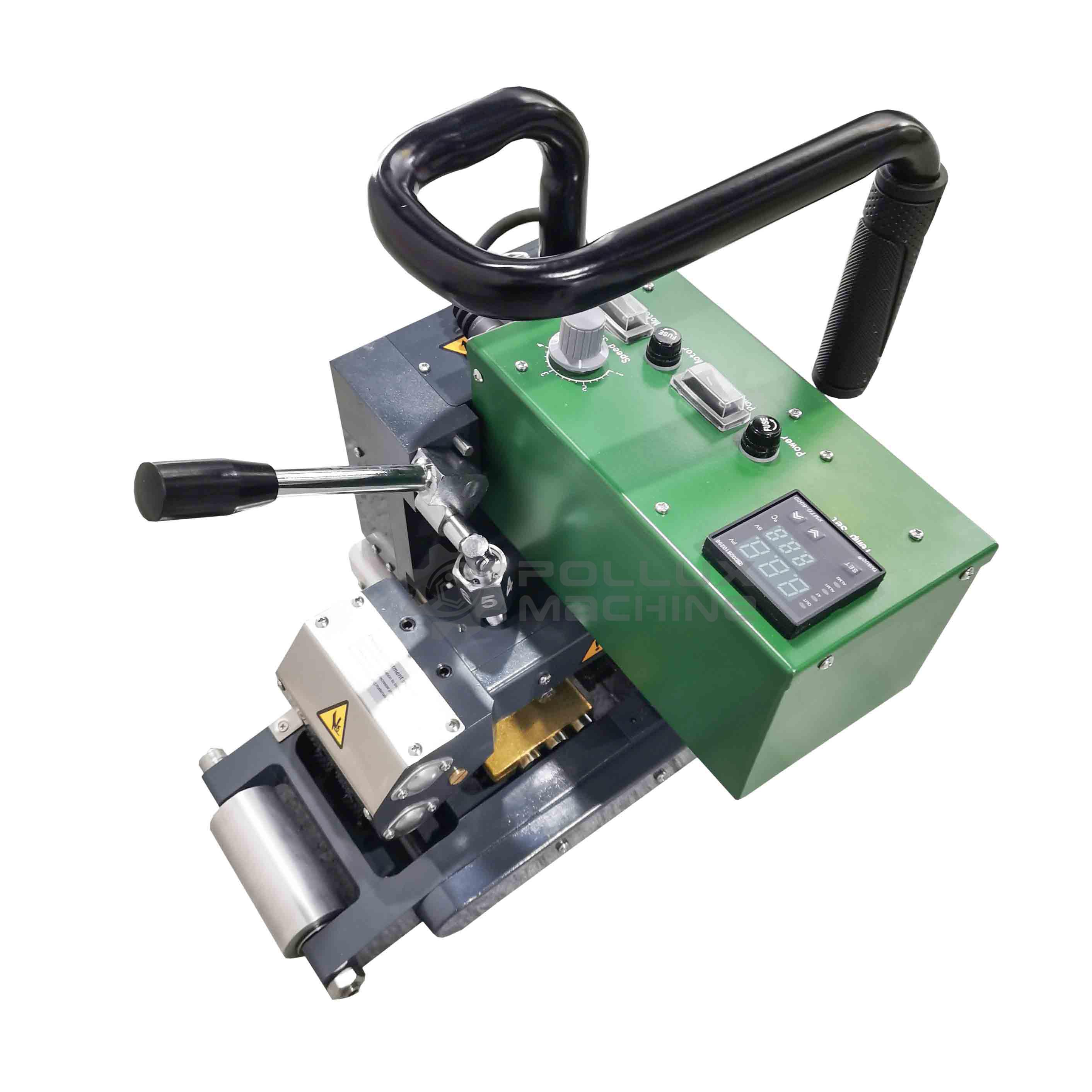

ICM G1800 geo-membrane overlap wedge welder is a new
automatic welding equipment, meet the welding of geo-membrane of various
thickness and are applicable for welding of all thermal-fused material
such as LDPE, PVC, HDPE, EVA,PP and so on.
The control of this series of welding machine adopts PID
automatic thermostatic control with high control accuracy and low
temperature fluctuation; speed control adopts PWM automatic voltage and
speed regulation circuit, driven by DC servo motor, with great output
torque and the operating is stable.
It can maintain a constant speed on the condition of
creeping, vertical creeping and variable road load.
Also this series of
welding machine is stable in performance despite of external temperature
and voltage variation.
This series of welding machine is excellent in
performance and easy for operating, with high welding speed and good
work quality.
It is extensively used in engineering projects such as
expressways , tunnels, reservoirs, garbage bury place, waterproof of
construction and so on.
 |
Hot
Wedge Welder used for welding over 1.0mm HDPE, LDPE ,EVA ,PVC, ECB,
PP
and
other hot melt materials.
|
Voltage |
220V |
|
Frequency |
50/60Hz |
|
Power |
1800W |
|
Welding temperature |
0-450 ℃ |
|
Welding Speed |
0.5-5 m/min |
|
Thickness of material |
1.0-3.0mm |
|
Welding width |
15 mmx2, interior cavity 15mm |
|
Overlap width |
120mm |
|
Seam Strength |
≥85% base material ( tensile resistant in
shear direction) |
|
Packing Size |
350x330x400mm |
|
Warranty |
2 Year |
Video |
