Tamping Rammers
Price with Honda GXR120 or Robin EH12:R20,495
Excl VAT
Code : REH12
icm@lantic.net
●
Special protective frame for engine, prevents any
possible damage on tough jobsite.
|
|

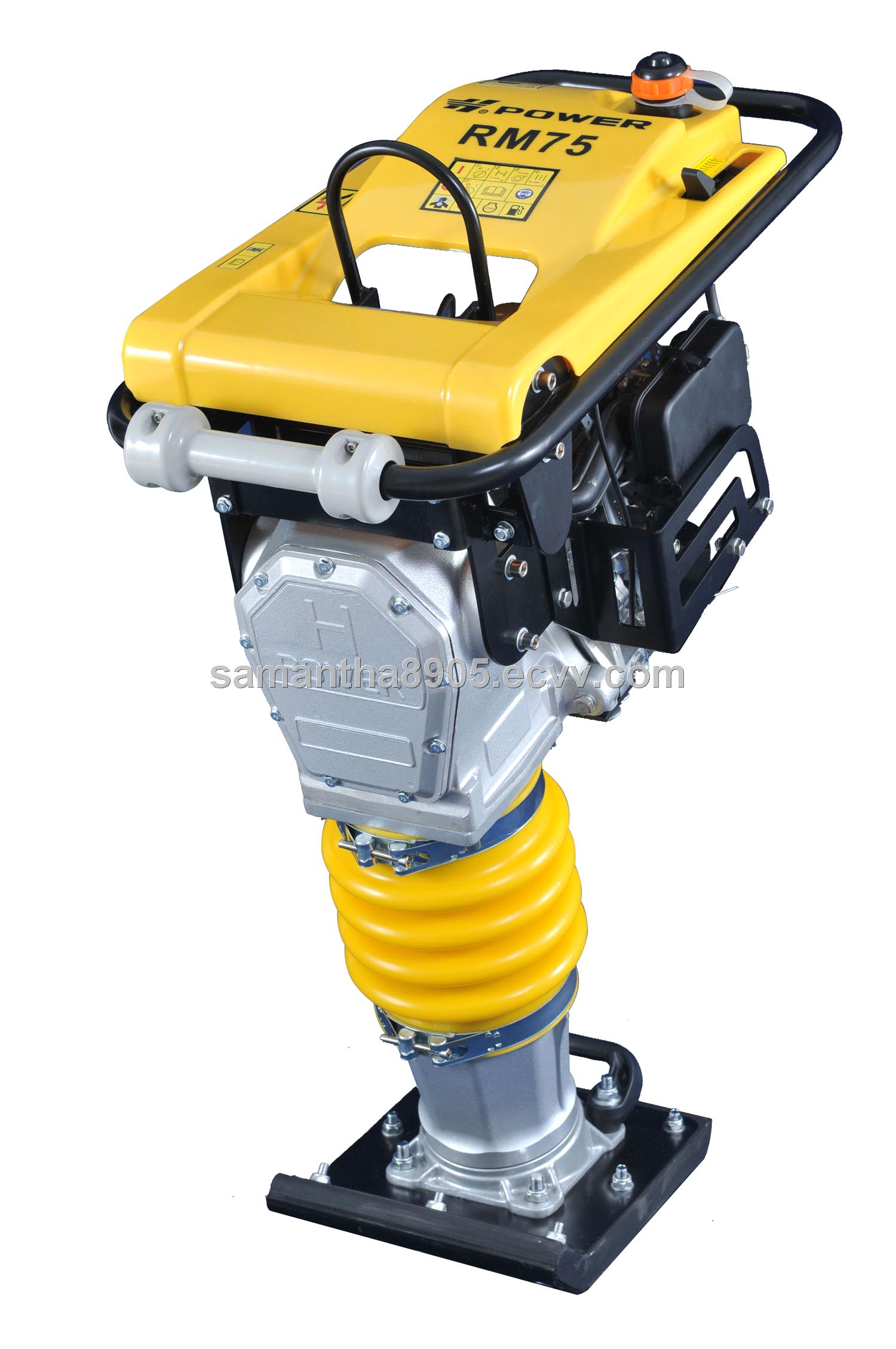

Honda Tamping Rammers
We Recommend
This Hydraulic ICM Rammer (
Japanese Design) other types cost less.
This type of Rammer
are designed to
deal with the tough site condition, well balanced, easy to operate and excellent
maneuverability in trenches and around pipes.
Additionally, every rammer is
performance tested before it is released from the factory.
ICM Grade A Rammer
● This Rammer is driven by 4-stroke Robin or HONDA GXR120 petrol engine designed especially for
rammers. No need to mix fuel and oil, easy starting, low-noise operation, low
maintenance and reduced fuel consumption comparing to 2-stroke engine.
● Additional built-in air filtration system plus the original air cleaners in
the engine provides cleaner air to engine for longer life.
Rammer
shoe made of steel plate with wooden insert offers economical usage.
● Plastic oil tank offers longer life and rust-free. compacting force,
offers a reliable lubricating system. All rammer must be transported vertically.
● High quality, German made polyurethane
bellow. Accepts more.
If you want quote please send e mail but not from Gmail because most of
Gmail's bounces back. this is problem when you get something for free.
e-mail: icm@lantic.net
|
Price RL500: R 85,000
Excl VAT New
Price RL600: R 105,000Excl VAT New
Used one 600 kg R45,000 incl VAT
Order form, Proforma invoice
e-mail: icm@lantic.net
You must make a double
ramp for loading and off loading. If you drop this item
from truck it get damaged. |
|

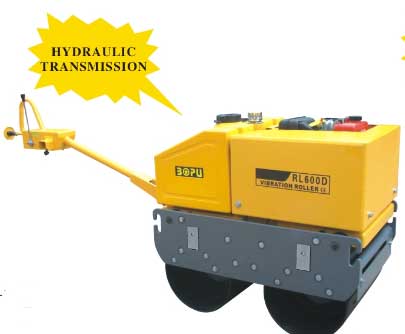

ICM Double drum Roller Model HCYL-600D-Diesel
Kipour
Similar to BOMAG double Roller. Very simple machine, noting to break.
You can use many other 10 HP Engines as well.
Double-drum vibratory roller
(RL-500, RL-600, RL-700)
1. Famous brand engine, excellent performance
2. Can work within small area
3. Imported hydraulic drive system from USA
4. The strainer and the water tank made of plastic
5. Dead-man safety control
6. The engine can not be activated when travel lever is located in neutral
position.
7. Working light.
|
Model |
RL500D |
RL600D |
RL700D |
|
Engine |
Diesel engine 178F 6.0HP |
|
Weight (KGS) |
550 |
650 |
760 |
|
Vibratory Frequency (times/min) |
3600 |
3600 |
3600 |
|
Centrifugal Force (KN) |
10 |
11 |
12 |
|
Max. Travelling Speed (KM/H) |
2.5 |
2.5 |
2.5 |
|
Gradeability (%) |
20 |
20 |
20 |
|
water tank capacity (L) |
50 |
55 |
60 |
|
fuel tank capacity (L) |
27 |
30 |
33 |
|
Vibratory Wheel Width (cm) |
65 |
65 |
65 |
|
packing size (cm) |
127*76*118cm (handle 162*31*38) |
|
